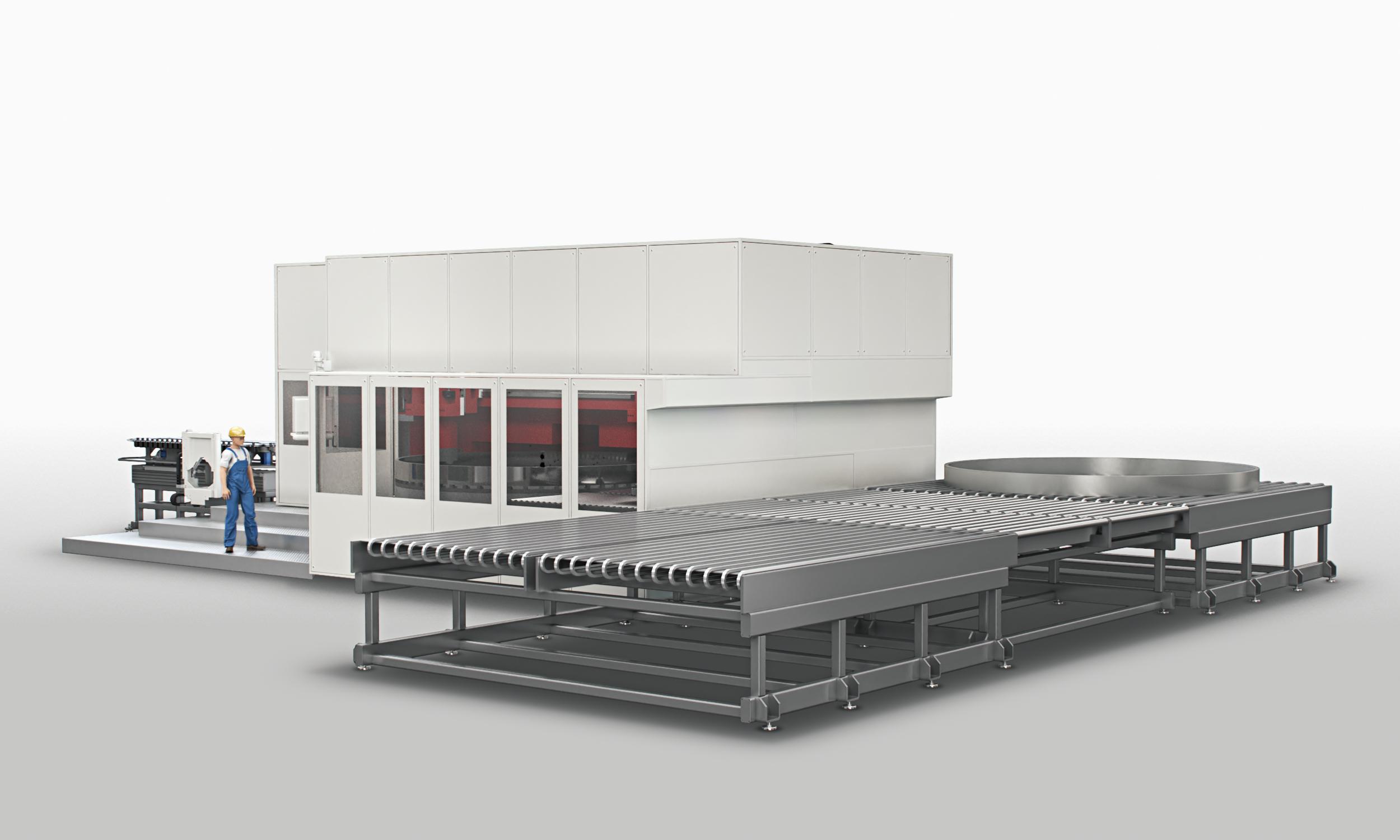

M40 – Superfinishing Machine
Overview
The M40 is our largest superfinishing platform, engineered to deliver consistent surface excellence on very large and heavy components.
Thanks to its robust mechanical structure, adaptive motion control, and precision tape or stone units, the M40 achieves micrometric repeatability even under extreme part sizes and weights.
Key features
- Axes: 4
- Linear Motors
- Spindle: Direct drive
- Spindle nose: 2450 mm
- Control system: SINUMERIK ONE
- Automation: Full self -loading system with magnetic or mechanical loader
Performance at a glance
- Max part diameter: 4500 mm
- Axes max speed (X-Z): 90 m/min - 60 m/min
- Spindle torque: Nm 25000 (S1) -40000 (S6)
Process
- HT Adaptive software for centering
- In-process monitoring
- Remote diagnostics via EWON modem
