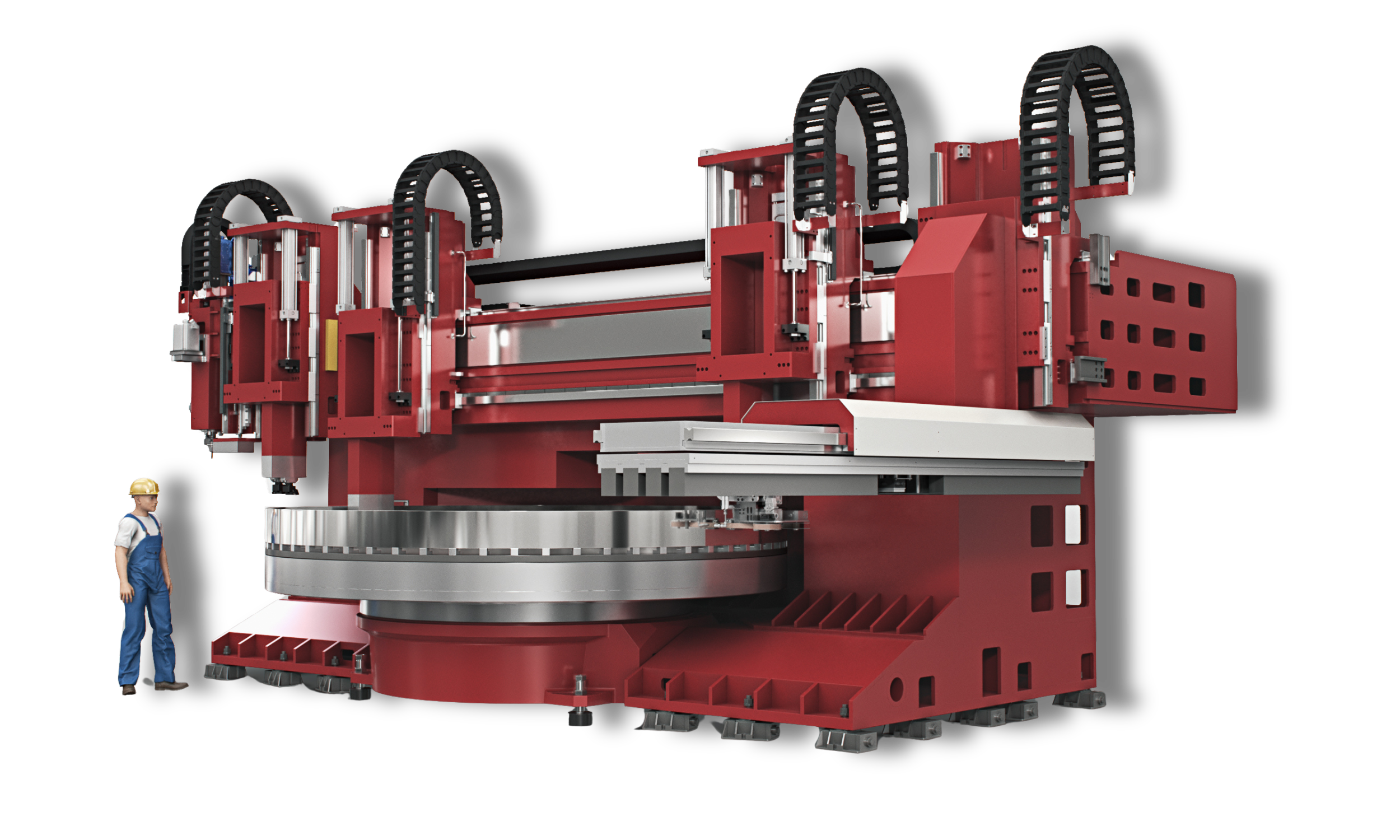

M40 – Combined Machine

Overview

The M40 Combined is the ultimate platform for machining large, high-precision components with integrated surface finishing.
It allows hard turning and superfinishing in one cycle, preserving alignment, improving surface integrity, and eliminating the need for transfer operations on massive parts.

Key features

  • Axes: 6
  • Linear Motors
  • Spindle: Direct drive
  • Spindle nose: 2450 mm
  • Control system: SINUMERIK ONE
  • Automation: Full self -loading system with magnetic or mechanical loader
  • Tool interface: CAPTO, HSK, VDI
  • ATC: 16 to 56 tools
  • Coolant system: UHPC up to 200 bar; 4 channels

Performance at a glance

  • Max part diameter: 4500 mm
  • Axes max speed (X-Z): 90 m/min - 60 m/min
  • Spindle torque: Nm 25000 (S1) - 40000 (S6)

Process

  • HT Adaptive software for centering
  • In-process monitoring
  • Tool presetting
  • Kistler force and tool monitoring
  • Tool ID System Balluff
  • Remote diagnostics via EWON modem
