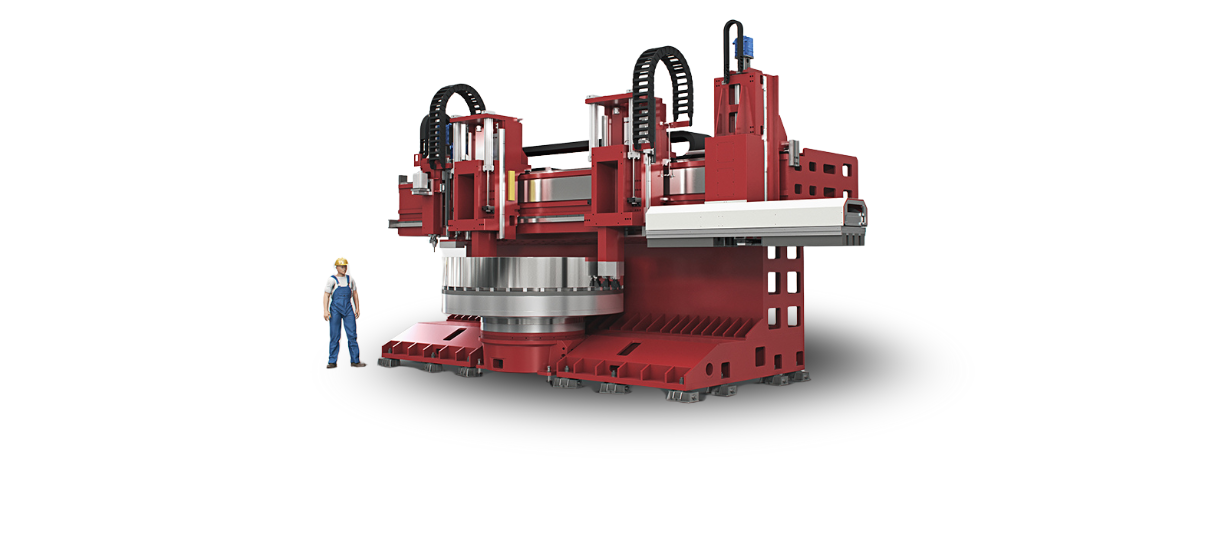

M25 – High Precision Hard Turning
Overview
The M25 in hard turning configuration brings micron-level consistency to large, post-hardened components.
With adaptive tool monitoring, in-process measurement, and a structure optimized for vibration damping, it enables manufacturers to replace grinding with a faster, fully automated process — without compromising accuracy or surface integrity.
Key features
- Axes: 4
- Linear Motors
- Spindle: Direct drive
- Spindle nose: 1400 mm
- Control system: SINUMERIK ONE
- Automation: Full self -loading system with magnetic or mechanical loader
- Tool interface: CAPTO, HSK, VDI
- ATC: 16 to 56 tools
- Coolant system: UHPC up to 200 bar; 4 channels
Performance at a glance
- Max part diameter: 2600 mm
- Axes max speed (X-Z): 90 m/min - 60 m/min
- Spindle torque: Nm 12100 (S1) - 23000 (S6)
Process
- HT Adaptive software for centering
- In-process monitoring
- Tool presetting
- Kistler force and tool monitoring
- Tool ID System Balluff
- Remote diagnostics via EWON modem
