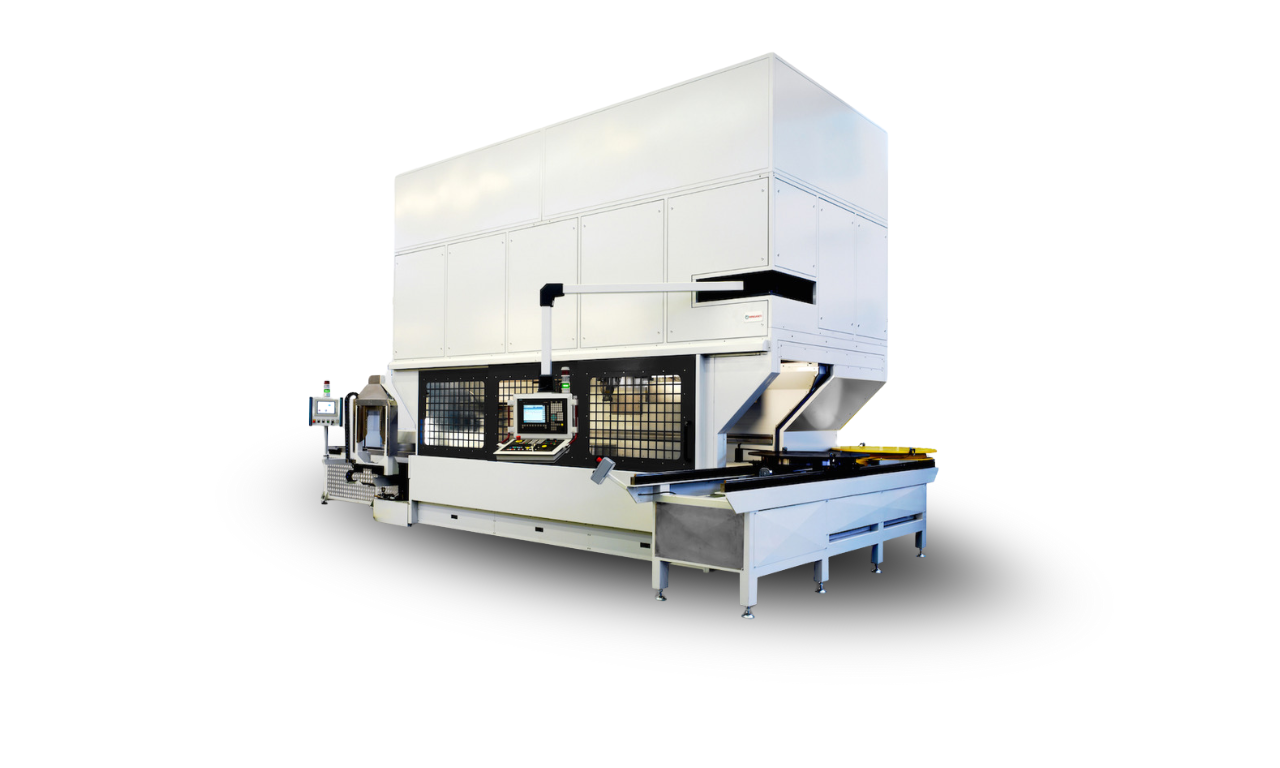

M15 – Hard Turning Machine
Overview
The M15 is designed for hard turning of large, heavy components, where power, thermal stability, and rigidity are non-negotiable.
Equipped with a direct-drive spindle and a wide base architecture, it guarantees stable cutting even under extreme forces.
With a fully integrated automation and monitoring ecosystem, it’s a perfect fit for demanding industrial sectors.
Key features
- Axes: 4
- Linear Motors
- Spindle: Direct Drive Spindle
- Spindle nose: 720 mm
- Control system: SINUMERIK ONE
- Automation: Full self -loading system with magnetic or mechanical loader
- Tool interface: CAPTO, HSK, VDI
- ATC: 16 to 56 tools
- Coolant system: UHPC up to 200 bar; 4 channels
Performance at a glance
- Max part diameter: 1600 mm
- Axes max speed (X-Z): 90 m/min - 60 m/min
- Spindle torque: Nm 5000 (S1)-11.000 (S6)
Process
- HT Adaptive software for centering
- In-process monitoring
- Tool presetting
- Kistler force and tool monitoring
- Tool ID System Balluff
- Remote diagnostics via EWON modem
