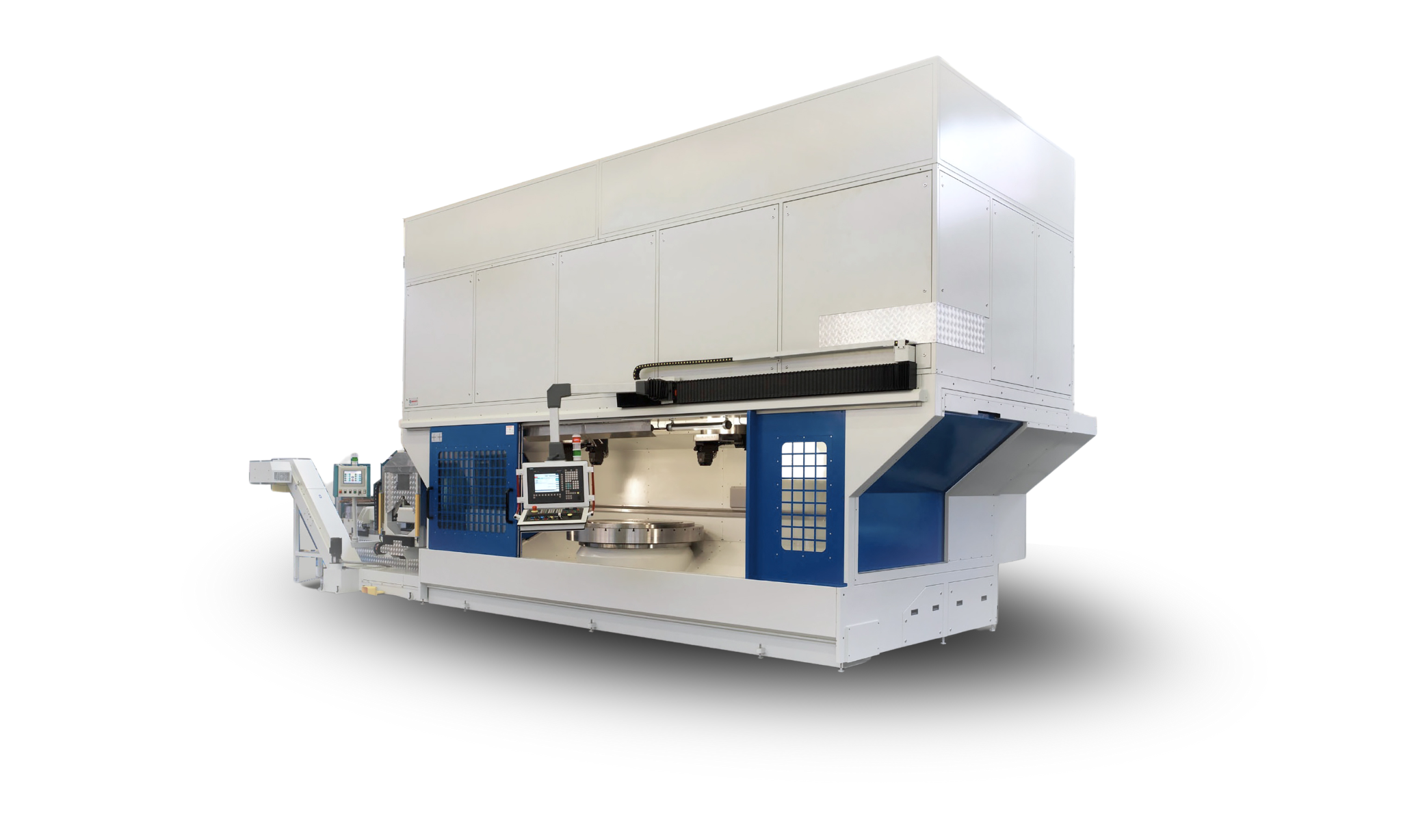

M10 - Hard Turning Machine
Overview
The M10 is built for strength, stability, and precision in the machining of large-diameter, high-hardness components.
With its heavy-duty structure, direct-drive spindle, and powerful linear axes, it offers exceptional cutting performance while maintaining high geometric accuracy.
It’s fully automation-ready and can be equipped with advanced process monitoring and measurement tools.
Key features
- Axes: 2 or 4
- Linear motors
- Spindle: electrospindle
- Spindle nose: ASA 11"
- Control system: SINUMERIK ONE
- Automation: Full self -loading system with magnetic or mechanical loader
- Tool interface: CAPTO, HSK, VDI
- ATC: 16 to 56 tools
- Coolant system: UHPC up to 200 bar; 4 channels
Performance at a glance
- Max part diameter: 1100 mm
- Axes max speed (X-Z): 90 m/min - 60 m/min
- Spindle power: kW 55-80 (S1)
Process
- HT Adaptive software for centering
- In-process monitoring
- Tool presetting
- Kistler force and tool monitoring
- Tool ID System Balluff
- Remote diagnostics via EWON modem
